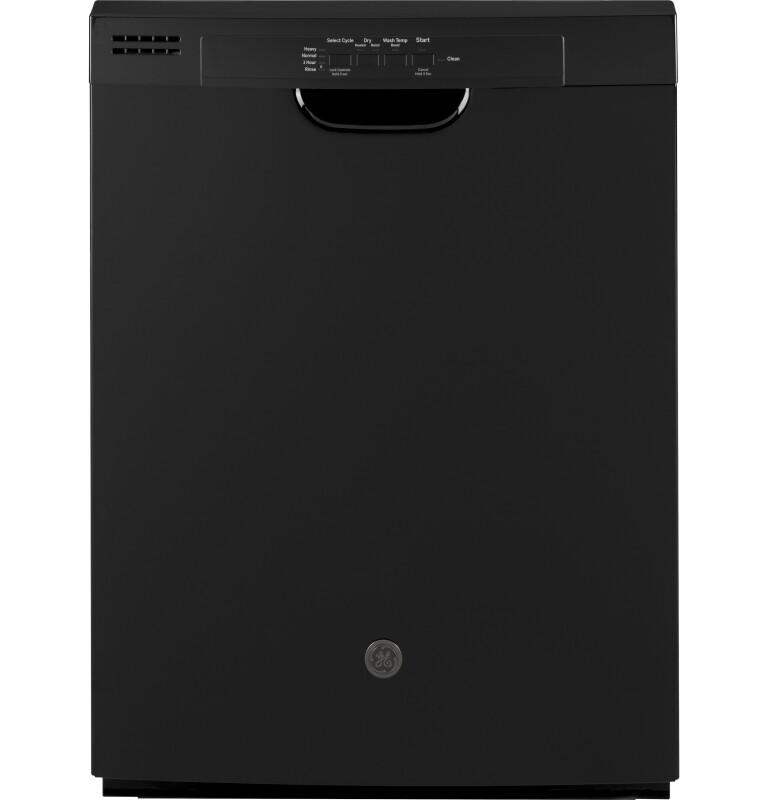

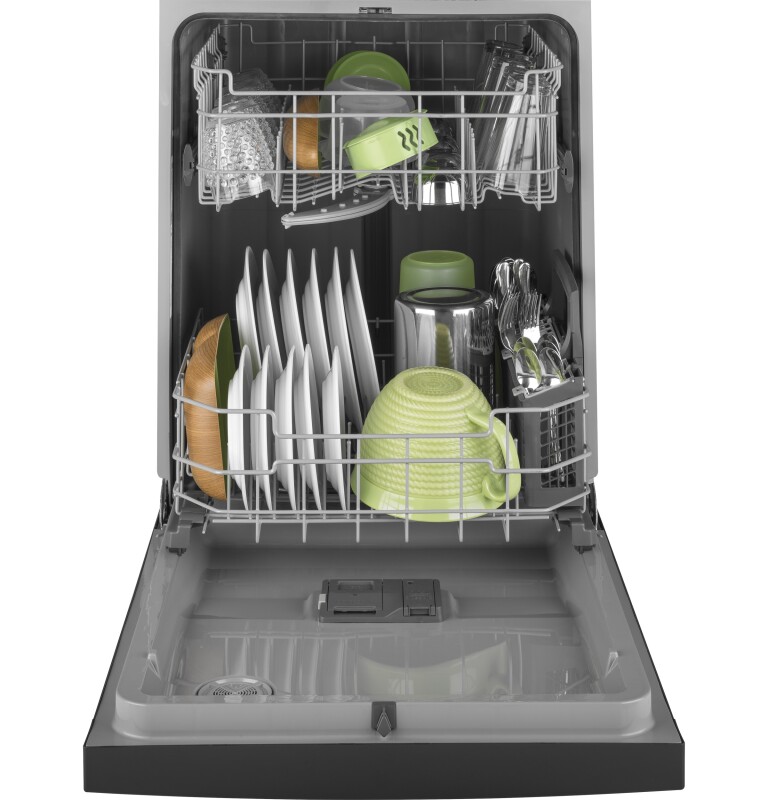

Dishwasher with Front Controls - GDF510PGMBB
Dishwasher with Front Controls
Model: GDF510PGMBB
Product Video
Dishwasher with Front Controls
Model: GDF510PGMBB
Color : Black
Key Features
Dry Boostā¢
1 Hr Wash
Dedicated Silverware Jets
Piranha Hard Food Disposer
Automatic Hot Start
Cabinet Depth Flush Install
Built Up Floor Capable
Heavy Wash
Description
Available from Elite Appliances and Cabinets, serving customers throughout Smithfield.
Features

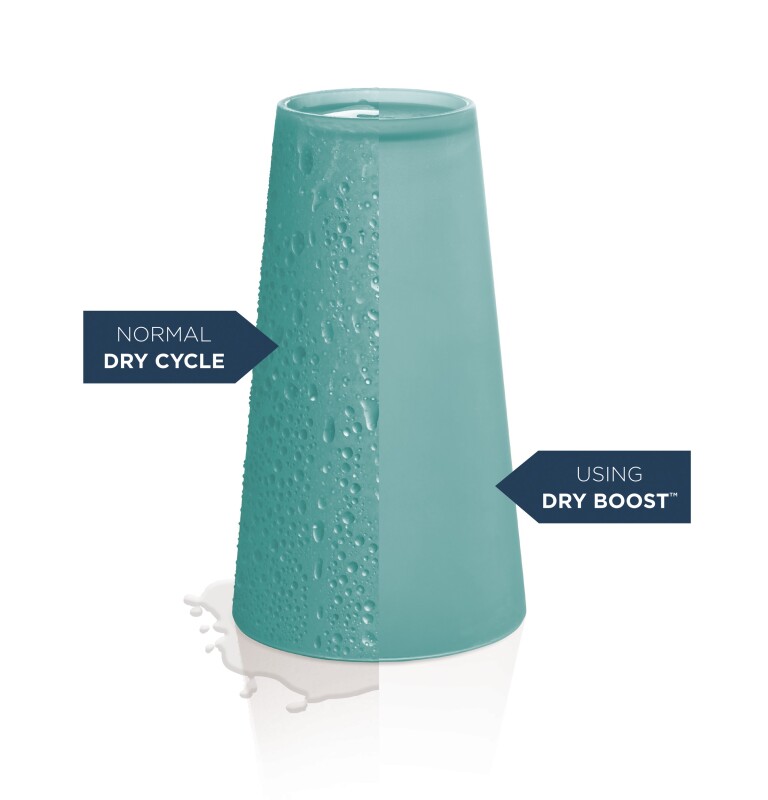

Dry Boostā¢
Gets hard-to-dry items up to 3 times drier than heated dry cycles *Compared to heated dry option

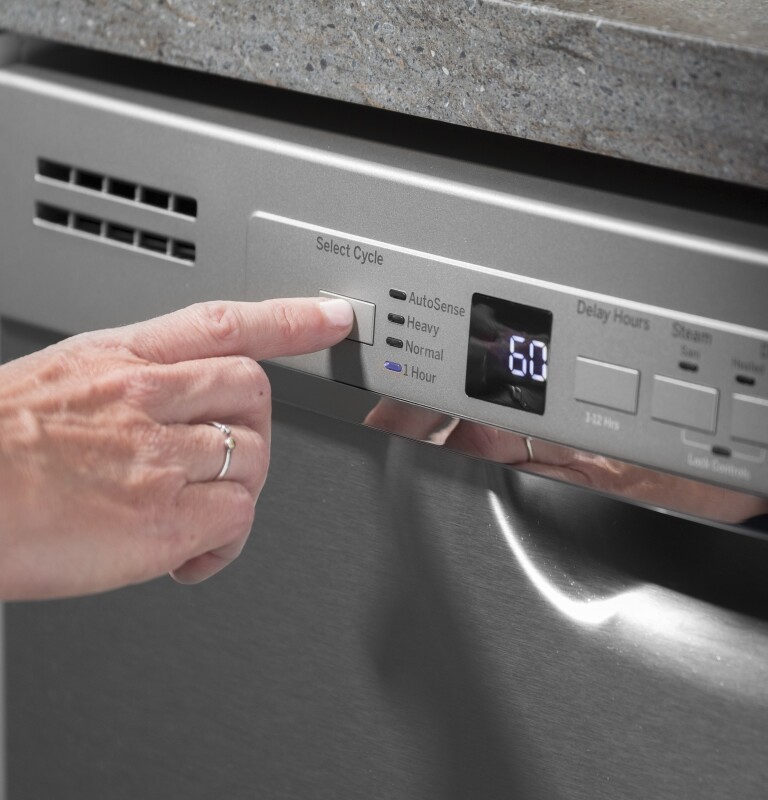

1 Hr Wash
Enjoy a quality clean when youāre short on time
Dedicated Silverware Jets
Get table-ready silverware thanks to powerful jets on the spray arm that focus on silverware baskets

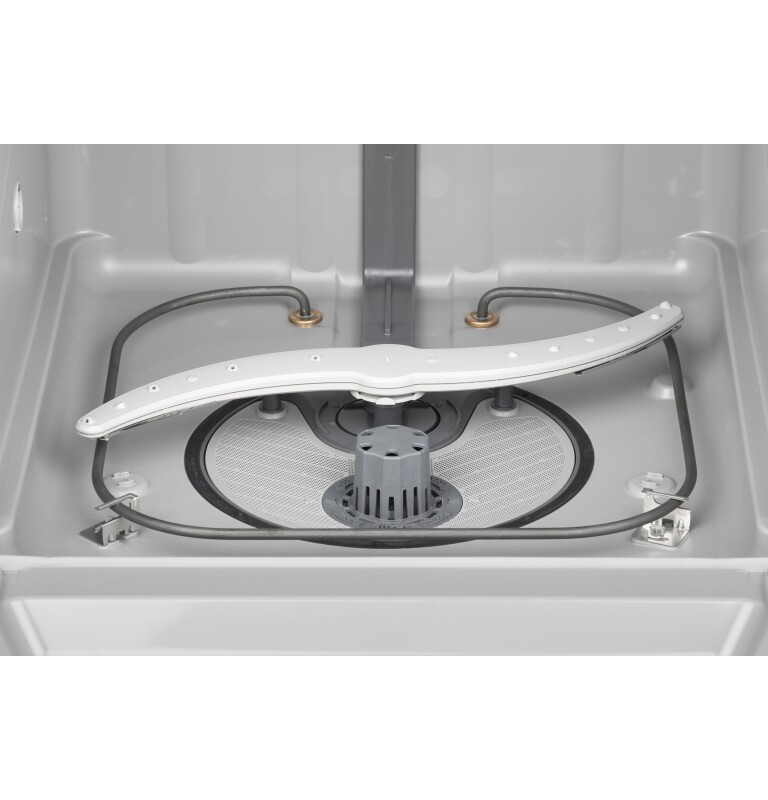

Piranha Hard Food Disposer
To ensure consistently clean items, this stainless steel blade rotates to pulverize food particles and helps to prevent large particles from clogging the wash arms
Automatic Hot Start
Provides optimal water temperature for dependable performance

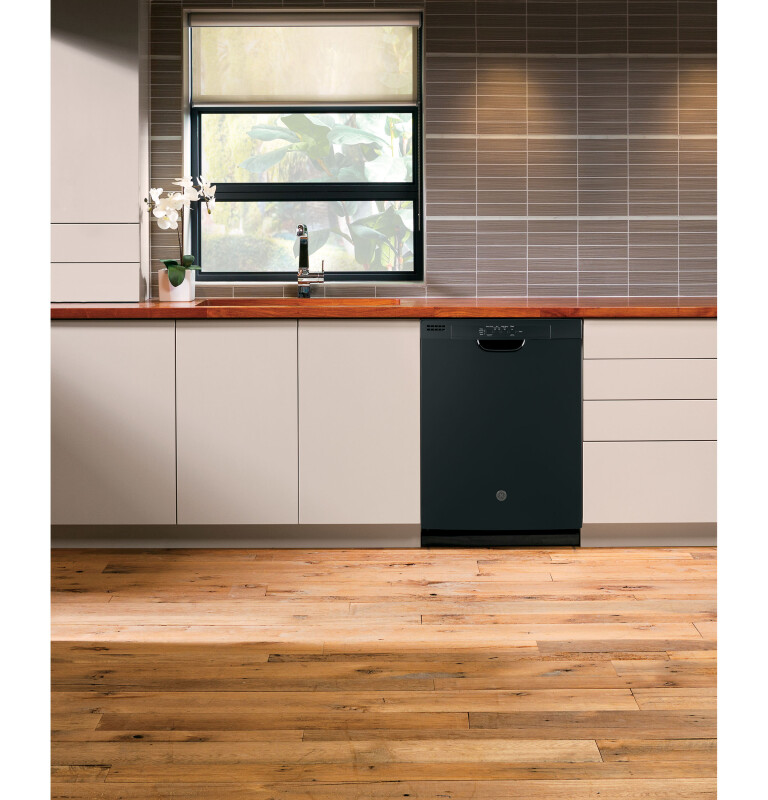

Cabinet Depth Flush Install
Achieving an attractive, flush appearance that complements and blends in with cabinetry is possible with a unique design that doesn't reduce rack capacity
Built Up Floor Capable
Installation over built-up floors is simple with the ability to adjust the dishwasher height to 33-3/8" - 34-5/8"
Heavy Wash
Great for heavily soiled dishes and cookware
Quiet Package
59 dBA
Certifications
CEE Tier I
California Prop 65
ENERGY STARĀ® Qualified
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

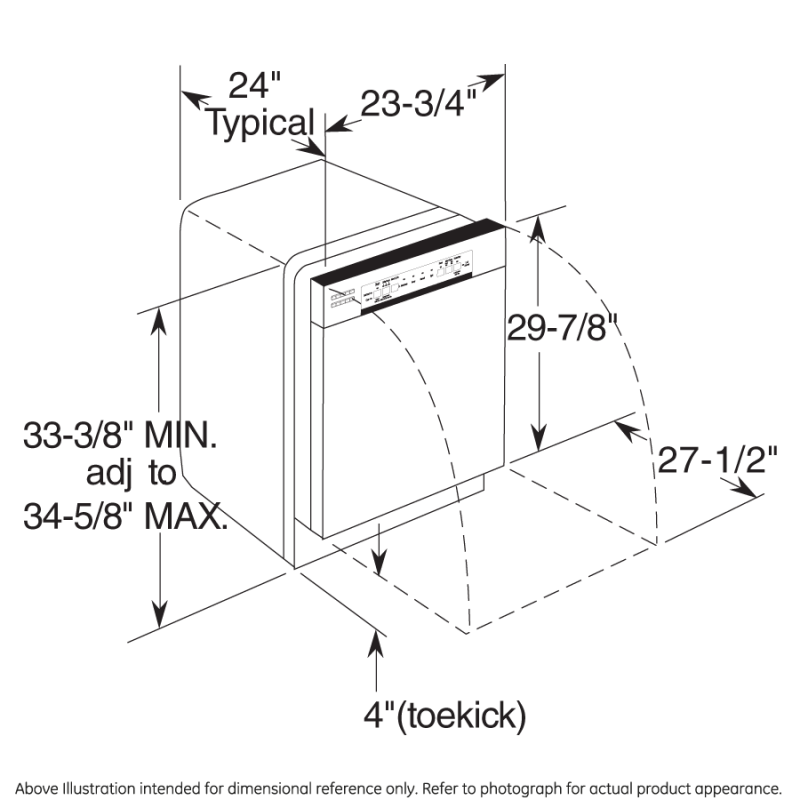

WEIGHTS & DIMENSIONS
| Overall Depth | 24 in |
| Overall Height | 34 in |
| Height w/ Legs Retracted - Minimum Height | 33.375 in |
| Cabinet Width | 24 in |
| Net Weight | 58 lb |
| Approximate Shipping Weight | 74 lb |
| Height w/Legs Extended - Maximum Height | 34.625 in |
| Overall Width | 23 3/4 in |
Dimensions & Weight
| Width | 23.75 in. |
| Height | 34 in. |
| Length | 24 in. |
| Weight | 58 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 28.75 in. |
| Shipping Height | 39 in. |
| Shipping Length | 29 in. |
| Shipping Weight | 98 lbs. |
| Total of Shipping Weight | 98 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 11.22 ftĀ³ |
| Dimensional Weight | 139.42 lbs. |
| Total of Cubes | 11.22 ftĀ³ |
| Total of Dimensional Weight | 139.42 lbs. |
FEATURES
| Wash System | 500 Series |
| Lower Rack | Ball-Tip Tines |
| Tub Type | Tall Tub |
| Leveling System | 4 Leveling Legs |
| Number of Place Settings | 14 |
| Tub Liner | Plastic |
| Latch | Center Pull |
| Number of Options | 5 |
| Style | Built-In Front Control |
| Water Filtration System | 100% Filtration with Piranha Hard Food Disposer and Removable Filter |
| Rack Features | Ball-Tipped Tines |
| Door Liner | Clean Design with Plastic |
| Rack Color | Silver |
| Dispenser | Rinse Aid with Indicator and Adjustment |
| WiFi Connect | Optional (Requires part no. PBX23W00Y1) |

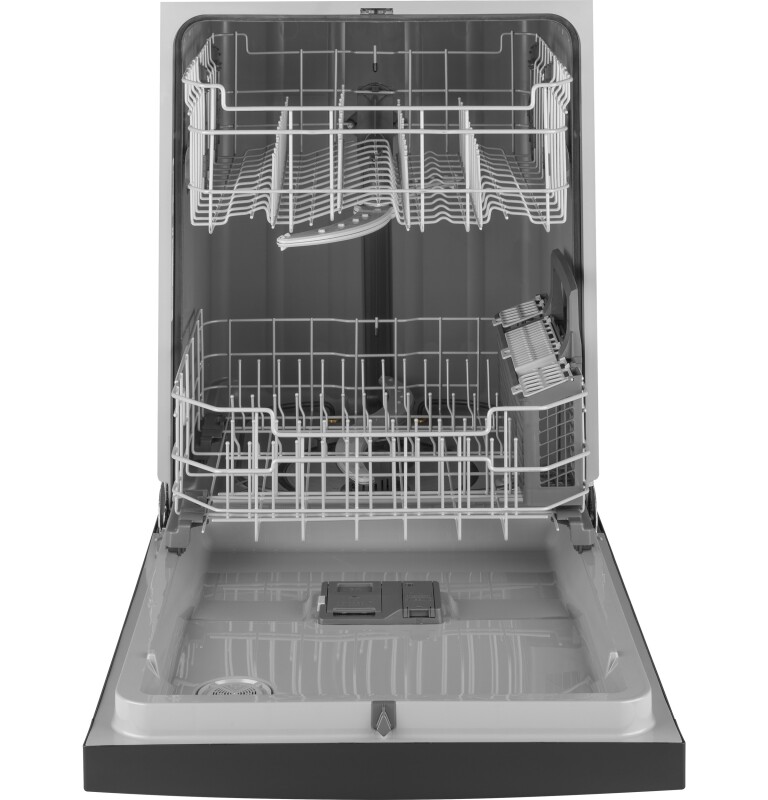

| Racking System | Towerless |
| Dishwasher Drying Features | Heated Dry - On/Off |
| Wash Arms | Middle |
| Exterior Style | Traditional |

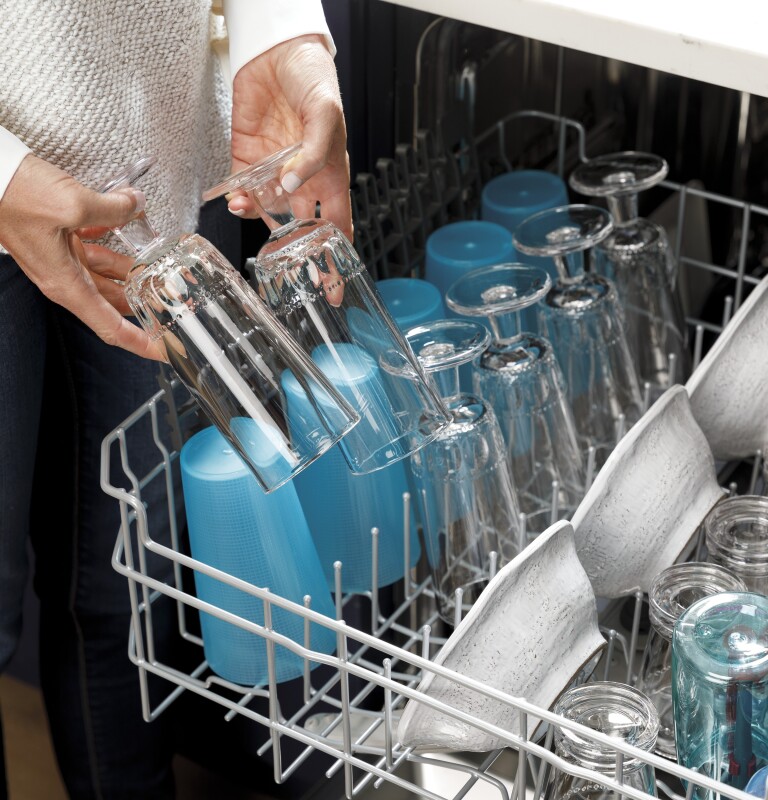

| Upper Rack | Removable |
| Dishwasher Control Features | Last Cycle Memory |
| Number of Cycles | 4 |
| Tub and Door Liner | Gray Plastic |
| Showroom Power Mode | Yes |
| Connected Capabilities | Amazon Dash Replenishment |

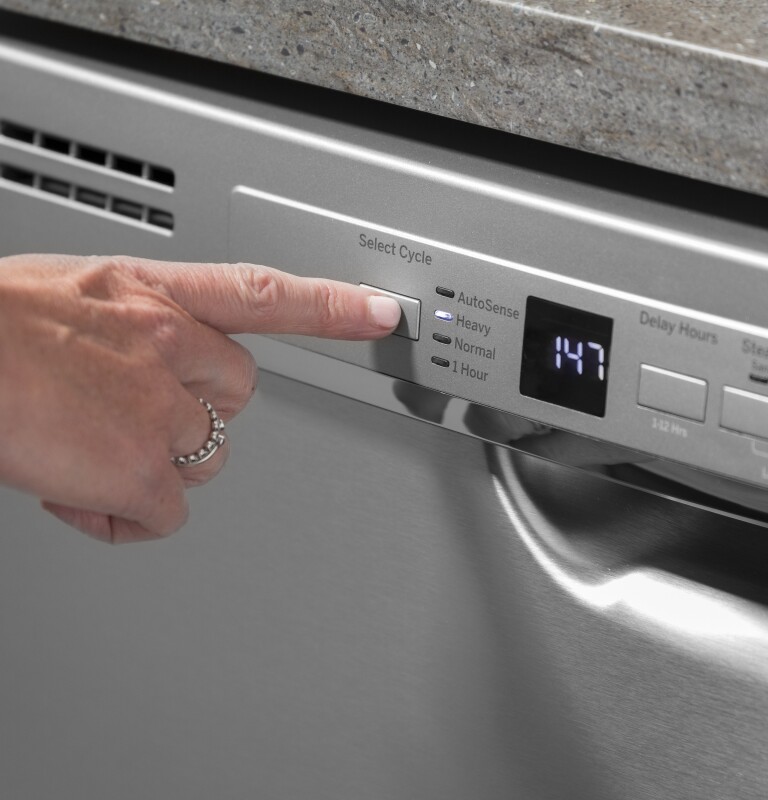

| Control Type | Electronic Tactile Buttons |
| Dishwasher Cycles | Heavy Wash |
| Dishwasher Options | Dry Boostā¢ |
| Wash System Features | Automatic Temperature Control |
| Dishwasher Options | Wash TempBoost |
| Dishwasher Cycles | Rinse |
| Control Type | Front Controls |
| Wash System Features | Piranhaā¢ Hard Food Disposer with removable filter |
| Connected Capabilities | The Google Assistant |
| Connected Capabilities | Amazon Alexa |
| Connected Capabilities | IFTTT |
| Connected Capabilities | Sonos |

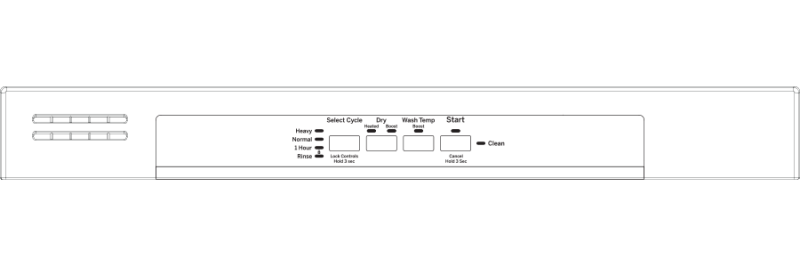

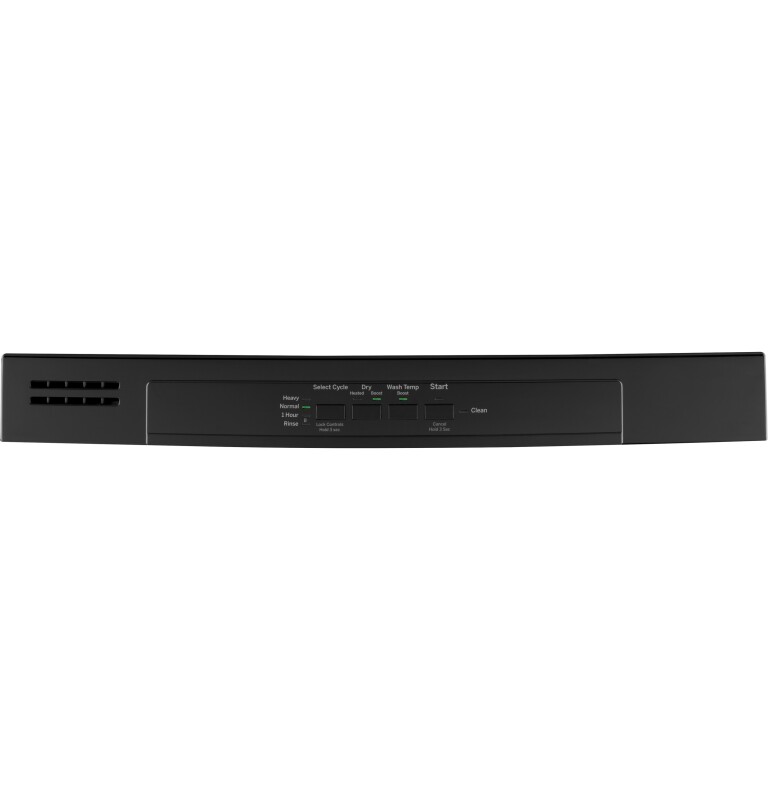

| Control Type | 4 Touchpads |
| Dishwasher Control Features | 1 "Clean" Cycle Progress Indicator |
| Dishwasher Cycles | Normal Wash |
| Dishwasher Cycles | 1 Hour Wash |
| Dishwasher Drying Features | Dry Boostā¢ |
| Dishwasher Options | Child Lock |
| Dishwasher Options | Heated Dry |
| Dishwasher Options | Start/Reset |

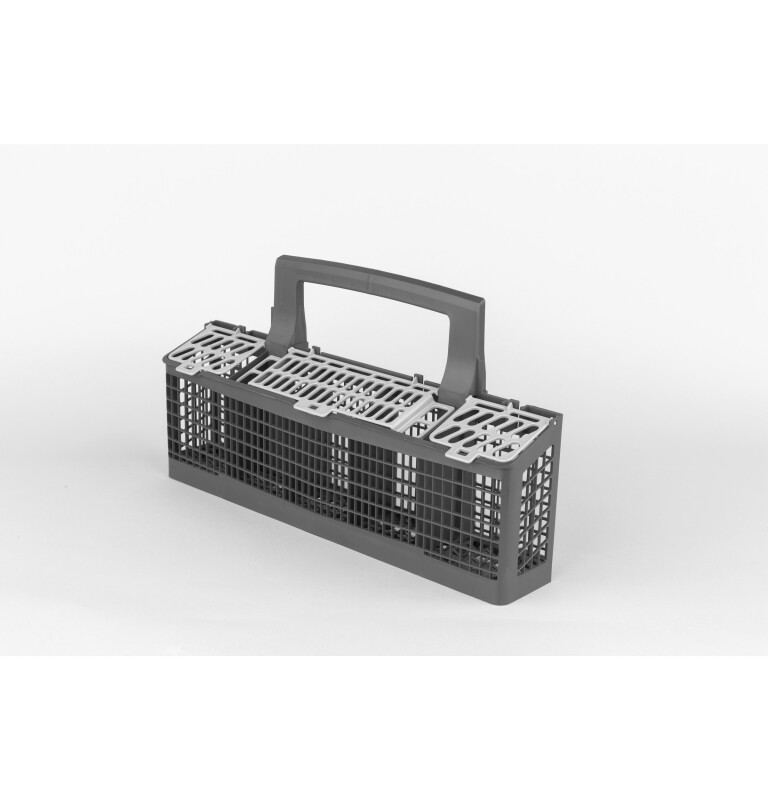

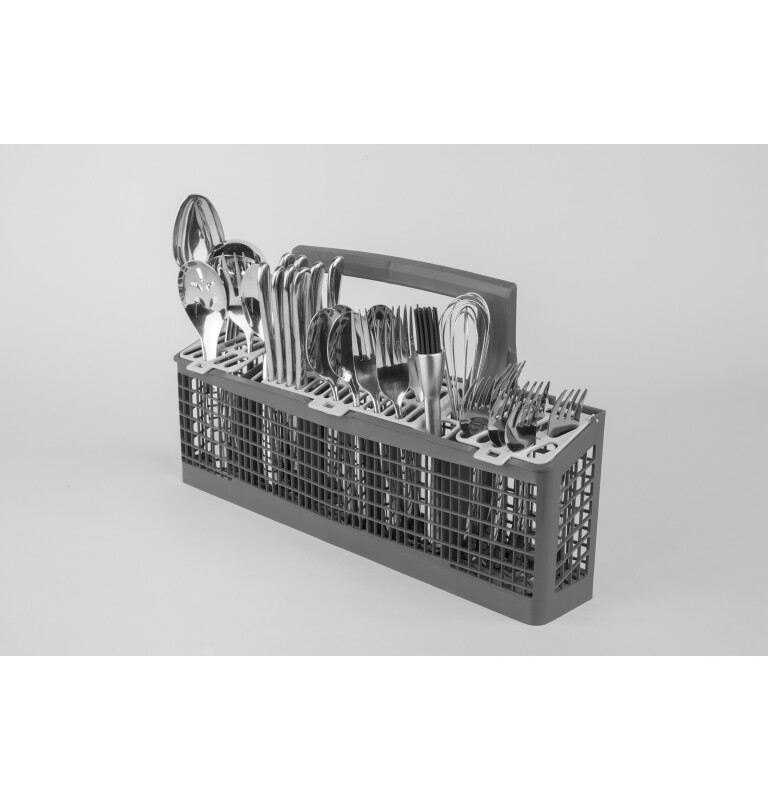

| Rack Features | 1 Piece Silverware Basket with 3 Cell Covers |
| Upper Rack | Ball-Tip Tines |
| Wash Arms | Lower |
| Wash System Features | Dual Pumps and Motors |
| Wash System Features | Automatic HotStart |
| Wash System Features | Dedicated Silverware Jets (on Wash Arm) |
POWER / RATINGS
| Power Connection | Optional cord kit (GPFCORD - WX09X70910, WX09X70911) |
| Calrod Heater Watts | 800/500 |
| Volts/Hertz/Amps | 120v; 60Hz; 7.1A |
ECONOMICAL / QUIET
| Door Insulation | Insulation |
| Quiet Package | 59 dBA |
| Motor Type | Single Speed |
| Quiet Features | Sealed Toe Kick |
| Quiet Features | Quiet Water Valve |
WARRANTY
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
| Parts Warranty | Limited 1-year entire appliance |
APPEARANCE
| Handle Color | Black |
| Door Style | Long Door |
| Door Appearance | Contour door |
| Color Appearance | Black |
| Control Panel Color | Black |
| Handle Design | Recessed |
| Installation | Flush Cabinet Installation |
| Installation | Side or Top Mount Install Brackets Included |
| Installation | Built-Up Floor Capable |
