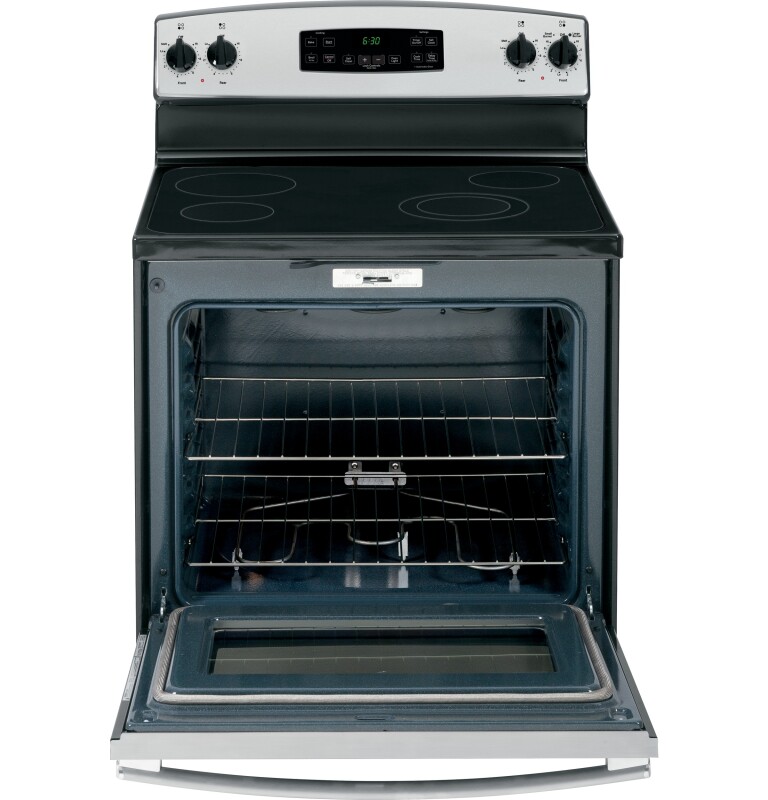

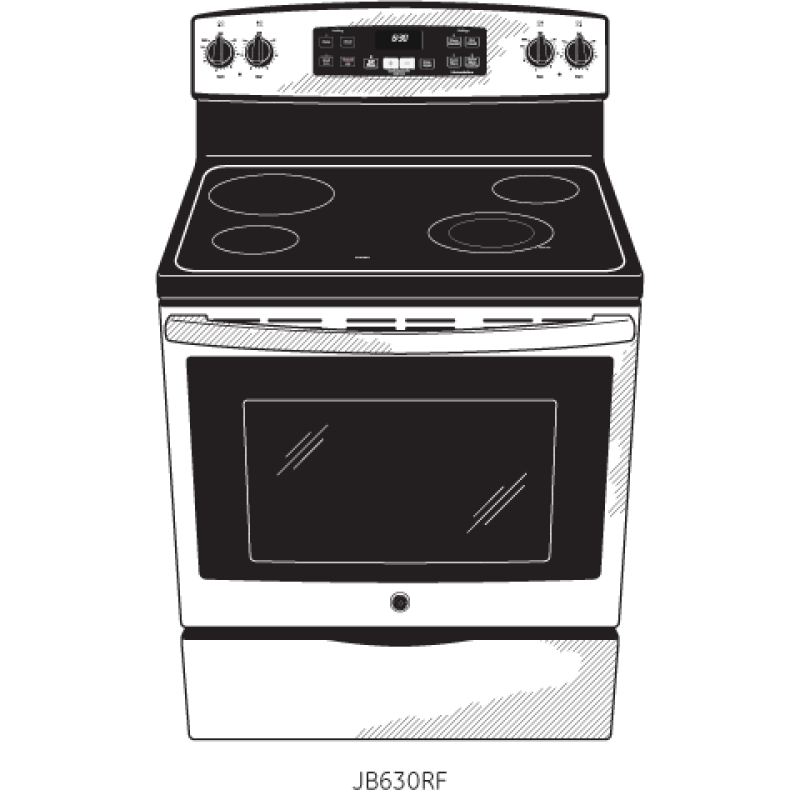

30" Free-Standing Electric Range - JB630RFSS
30" Free-Standing Electric Range
Model: JB630RFSS
Product Video
30" Free-Standing Electric Range
Model: JB630RFSS
Color : Stainless Steel
Key Features
9"/6" Power Boil element
5.3 cu. ft. oven capacity
Self-clean oven
Ceramic glass cooktop
Removable full-width storage drawer
Dual-element Bake
Description
Available from Elite Appliances and Cabinets, serving customers throughout Smithfield.
Features

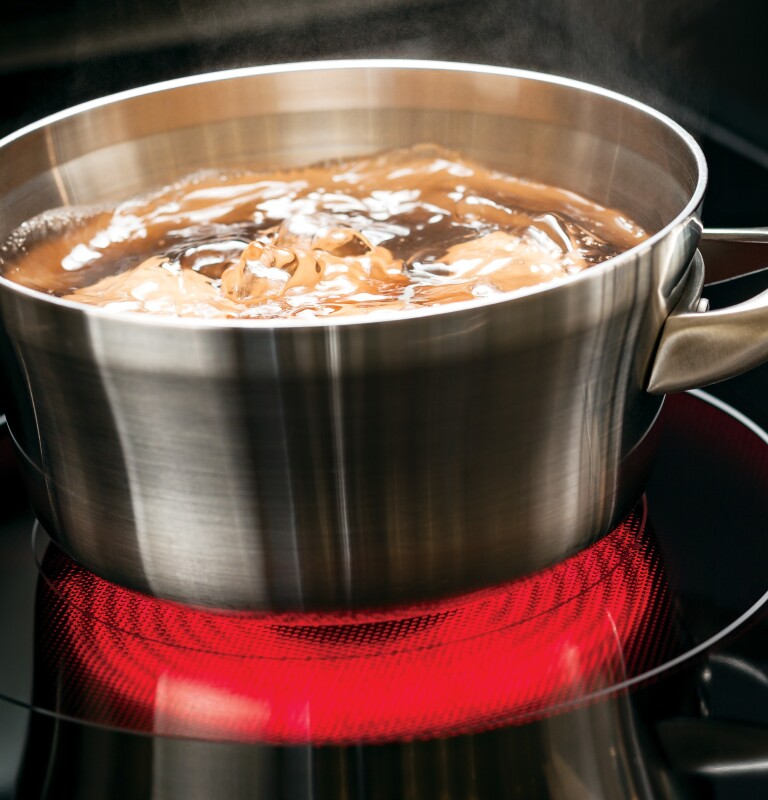

9"/6" Power Boil element
Produces rapid, powerful heat

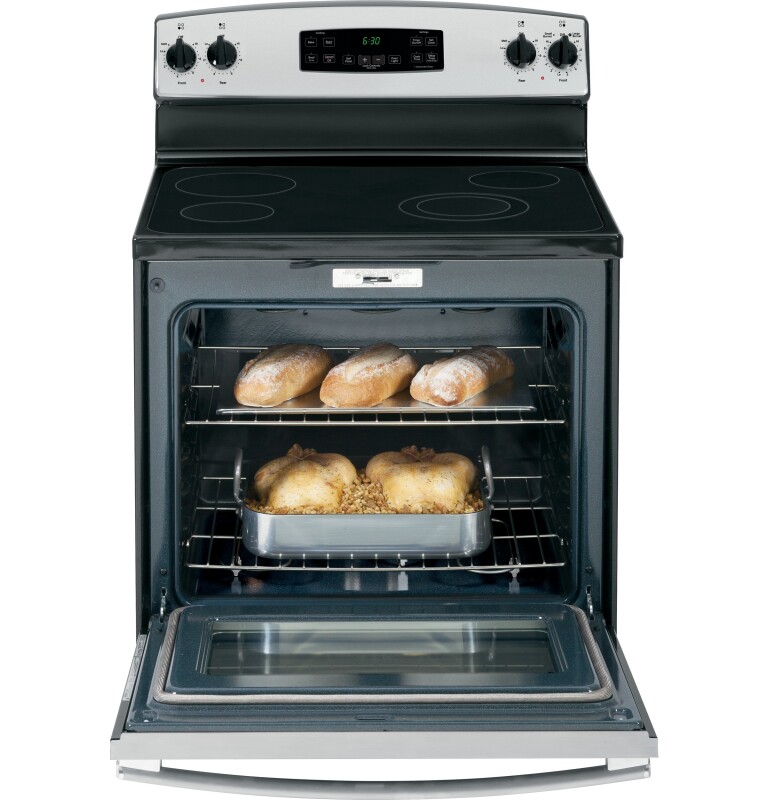

5.3 cu. ft. oven capacity
Enough room to cook an entire meal at once
Self-clean oven
Cleans the oven cavity without the need for scrubbing

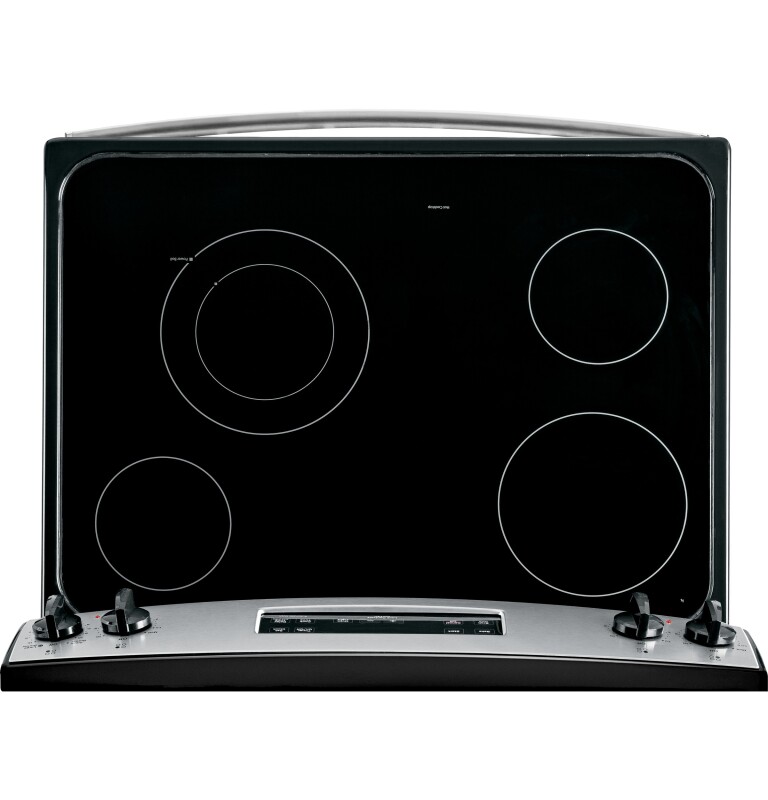

Ceramic glass cooktop
Smooth cooktop easily wipes clean

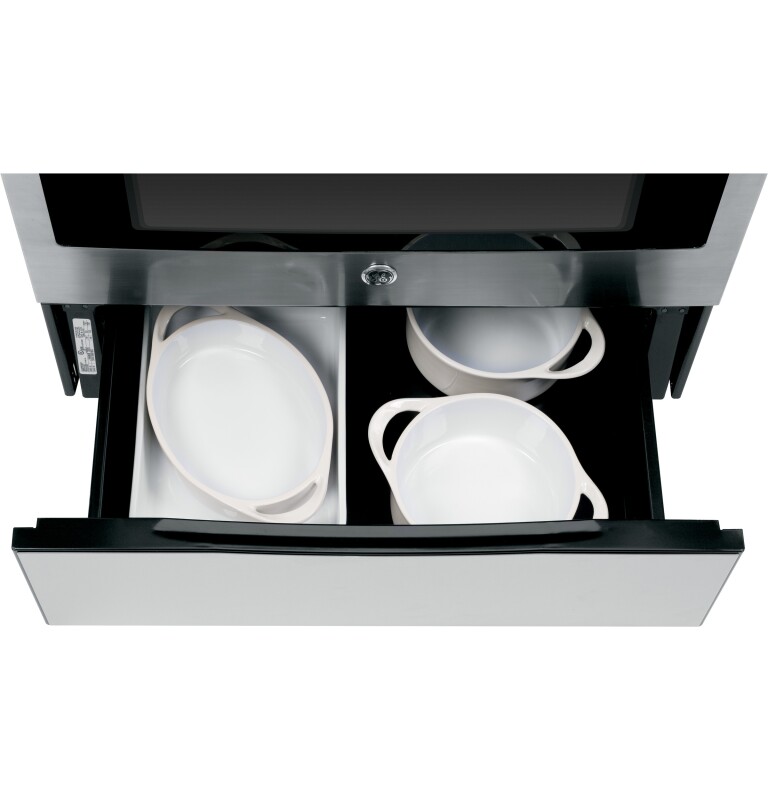

Removable full-width storage drawer
Store cookware or kitchen accessories
Dual-element Bake
Upper and lower elements produce even heat and great results
Certifications
California Prop 65
MADE IN AMERICA: 70 to 90% U.S. Content
Specifications
Warranty
| Parts | 1 Year |
| Labor | 1 Year |

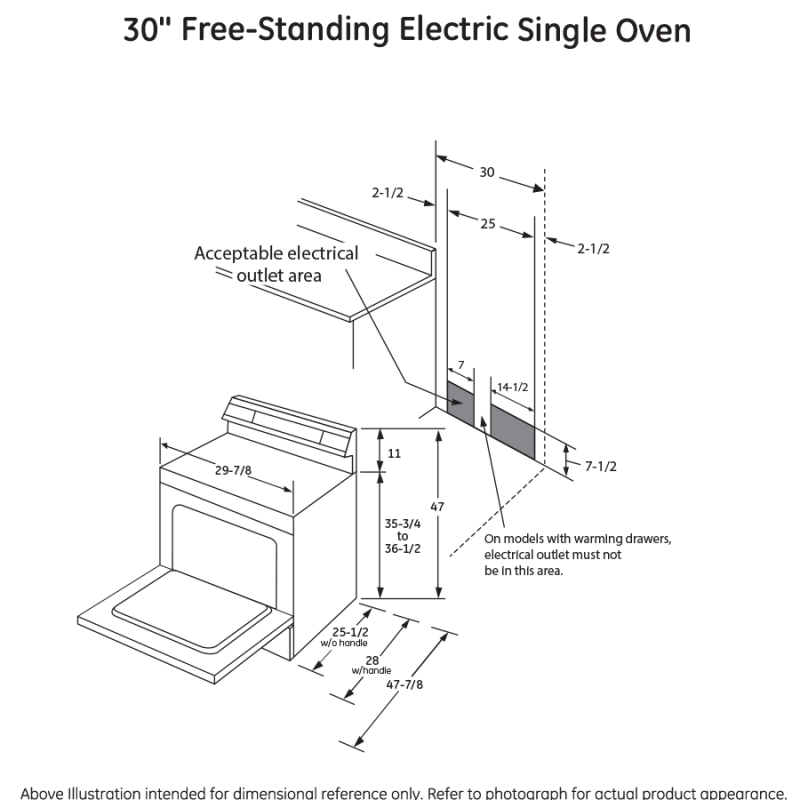

WEIGHTS & DIMENSIONS
| Overall Depth | 28 in |
| Overall Height | 47 in |
| Net Weight | 158 lb |
| Depth Without Handle | 25.5 in |
| Cabinet Width | 30 in |
| Approximate Shipping Weight | 179 lb |
| Depth with Door Open | 47.875 in |
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/4 x 19-1/2 |
| Overall Width | 29 7/8 in |
| Height to Cooking Surface (in.) | 35.75 - 36.5 |
Other
| Oven Interior Dimensions (W x H x D) (in.) | 24-1/8 x 19-1/4 x 19-1/2 |
Dimensions & Weight
| Width | 29.88 in. |
| Height | 47 in. |
| Length | 28 in. |
| Weight | 158 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 34.88 in. |
| Shipping Height | 52 in. |
| Shipping Length | 33 in. |
| Shipping Weight | 198 lbs. |
| Total of Shipping Weight | 198 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 22.75 ft³ |
| Dimensional Weight | 282.85 lbs. |
| Total of Cubes | 22.75 ft³ |
| Total of Dimensional Weight | 282.85 lbs. |
FEATURES
| Cooking System | Traditional |
| Storage Drawer Features | Removable Full-Width |
| Oven Rack Features | 2 Oven Racks |
| Element - Left Front | 6" 1200W |
| Oven Cleaning Type | Self-Clean |
| Product Type | Free-Standing Single Oven |
| Heating Element "ON" Indicator Light | 3 |
| Element - Right Front | 9"/6" 3000W Power Boil |
| Interior Oven Light | 1 Incandescent |
| Control Location | Backsplash |
| Drawer Type | Storage |
| Hot Surface Indicator Lights | 1 |
| Element - Left Rear | 8" 2000W |
| Cooking Technology | Traditional |
| Configuration | Range with Storage Drawer |
| Oven Features | 6-Pass Broil Element |
| Melt Setting | Yes |
| Cooktop Burner Type | Smoothtop |
| Element - Right Rear | 6" 1200W |
| Cooktop Surface | One-Piece Upswept |
| Oven Rack Positions (Single or Upper/Lower) | 6 |

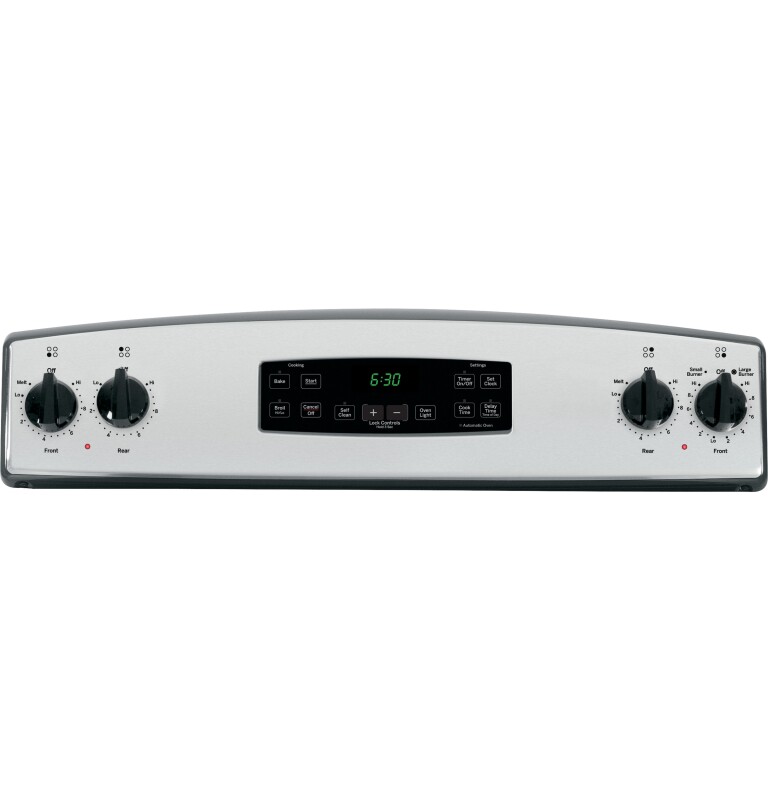

| Control Type | Electronic |
| Oven Control Features | Auto Oven Shut-Off with Override |
| Oven Control Features | Self-Cleaning Cycling Light |
| Control Type | Touchpads |
| Control Type | Digital Temperature Display |
| Cooktop Burner Type | Radiant |
| Cooktop Surface | Black Ceramic Glass |
| Oven Control Features | Audible Preheat Signal |
| Oven Control Features | Auto Self Clean |
| Oven Control Features | Sabbath Mode |
| Oven Control Features | Control Lock Capability |
| Oven Control Features | Delay Bake Option (Time Bake) |
| Oven Control Features | Delay Clean Option |
| Oven Control Features | Electronic Clock & Kitchen Timer |
| Oven Control Features | Hi / Low Broil |
| Oven Control Features | Oven "ON" Light |
| Oven Control Features | Self-Clean Cool Down Time Display |
| Oven Features | 6-Pass Bake Element |
APPEARANCE
| Handle | Stainless Steel |
| Textured Steel Side Panels | Yes |
| Control Knobs | Gloss Black |
| Color Appearance | Stainless Steel |
| Oven Door Features | Glass Door |
| Oven Door Features | Stainless Overlay |
| Handle | Designer Style |
| Oven Door Features | Big View Oven Window |
POWER / RATINGS
| Amp Rating at 208V | 40 |
| Broiler Wattage | 3800W |
| Amp Rating at 240V | 40 |
| KW Rating at 240V | 11.3 |
| Bake Wattage | 3410W |
| KW Rating at 208V | 8.5 |
WARRANTY
| Parts Warranty | Limited 1-year entire appliance |
| Labor Warranty | Limited 1-year entire appliance |
| Warranty Notes | See written warranty for full details |
ACCESSORIES
| Cooktop Cleaning | Included |
| Cooktop Cleaning | Sponge |
| Cooktop Cleaning | Cream |
CAPACITY
| Total Capacity (cubic feet) | 5.30 cu ft |
