- FGEC3048US
Model: FGEC3048US
Model: FGEC3048US
Color : Stainless Steel
Key Features
Get Cooking Faster with Quick Boil
SpaceWise® Expandable Elements
Frigidaire® Fit Promise
Easy to Use Front Controls
Express-Select® Controls
Ceramic Glass Cooktop
Hot Surface Indicators
Approved Over Frigidaire® Electric Wall Ovens
Available from Elite Appliances and Cabinets, serving customers throughout Smithfield.
Features
Get Cooking Faster with Quick Boil
Our powerful 3,200 watt element allows you to boil water in less than three minutes.
SpaceWise® Expandable Elements
Flexible elements expand to your cooking needs.
Frigidaire® Fit Promise
We promise that your new 30" or 36" Frigidaire Gallery® brand cooktop will fit your existing countertop cutout of the same width and configuration, or we will reimburse you for cabinet modification costs up to $100.

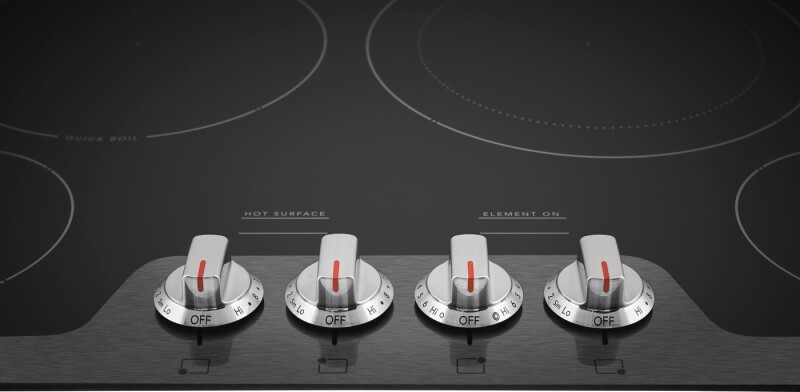

Easy to Use Front Controls
Controls located on the front of the cooktop allows you to adjust the temperature without reaching over hot items.
Express-Select® Controls
Easily go from warm to boil.
Ceramic Glass Cooktop
For a more beautiful cooktop that’s easy to clean.
Hot Surface Indicators
Light on your cooktop informs you when the surface is hot.
Approved Over Frigidaire® Electric Wall Ovens
Cooktops are approved for installation above any of our Single Electric Wall Ovens.
Certifications
ADA Compliant
UL Listed
Specifications
Other
| Frigidaire Fit Promise | Yes |
| Warranty - Labor | 1 Year |
Controls
| Sabbath Mode | No |
Certifications and Approvals
| ADA Compliant | Yes |
| UL Listed | Yes |
Cooktop
| Cooking Surface Type | Smooth |
| Hot-Surface Indicator Light | Yes |
Cooktop Performance
| Right Front Element Burner Size | 6" |
| Right Rear Element Burner Size (Small) | 9" |
| Right Rear Element Burner Size (Large) | 12" |
| Left Front Element Burner Size | 6" |
| Left Rear Element Burner Size | 9" |
| Right Front Element Burner | 1200 Watts |
| Right Rear Element Burner (Small) | 1800 Watts |
| Right Rear Element Burner (Large) | 3000 Watts |
| Left Front Element Burner | 1200 Watts |
| Left Rear Element Burner | 3200 Watts |
Electrical Specifications
| Amps @ 240 Volts | 35.8 Amps |
| Connected Load @ 240V | 8.6 kW |
| Minimum Circuit Required | 40 Amps |
| Voltage Rating | 240 V |
Installation
| Installed Over a Wall Oven | Yes |
| Power Supply Connection Location | Right Center |
Display
| Display Type | Mechanical |
Dimensions & Weight
| Width | 30 in. |
| Height | 2 in. |
| Length | 21 in. |
| Weight | 38 lbs. |
Number of Boxes, Shipping Dimensions, & Shipping Weight
| Number of Boxes | 1 |
| Shipping Width | 35 in. |
| Shipping Height | 7 in. |
| Shipping Length | 26 in. |
| Shipping Weight | 78 lbs. |
| Total of Shipping Weight | 78 lbs. |
| Source | Calculation |
Cubic Feet Measurement & Dimensional Weight
| Cubic Feet Measurement | 0.73 ft³ |
| Dimensional Weight | 7.59 lbs. |
| Total of Cubes | 0.73 ft³ |
| Total of Dimensional Weight | 7.59 lbs. |
